Flow Instrument Comparison1. Defining Flow Switch Accuracy: The Core Metrics
Accuracy in a Flow Switch is not a single number. It is a composite performance profile consisting of Basic Error, Repeatability, and Drift.
Key Performance Indicators (KPIs)
- Basic Error: The deviation between the actual set point and the physical trigger point.
- Repeatability: High-end industrial sensors must maintain repeatability ≤ 0.2% FS. The NOIKE-AH NK300 Series utilizes precision sensing technology to ensure consistent trigger points across thousands of cycles.
- Drift Error: The shift in the set point caused by environmental changes, such as temperature fluctuations or vibration.
2. Thermal Dispersion Technology: Performance Deep Dive
Thermal flow switches have become the gold standard in semiconductor, chemical, and water treatment industries due to their no-moving-parts design and low pressure drop.
Why Choose NOIKE-AH NK300 & NK600 Series?
In thermal sensing, temperature fluctuation is the “accuracy killer.” NOIKE-AH solves this through advanced engineering:
- NK300 Series (General Purpose): Designed for standard industrial fluid monitoring. Its built-in high-sensitivity thermal dispersion sensor excels in low-flow detection, such as pump dry-run protection.
- NK600 Series (Advanced Performance): The NK600 features an integrated Dynamic Temperature Compensation Algorithm. This allows the device to maintain a rock-solid trigger point even if media temperatures swing from 20°C to 80°C, reducing temperature-induced drift by over 70%.
3. Technology Comparison: Accuracy vs. Application
| Sensor Type | Avg. Accuracy (FS) | Repeatability | Core Advantage | Recommended Product |
| Thermal (High-End) | ±1.0% – ±2.0% | Excellent | No wear, No pressure drop | NK600 (NOIKE-AH) |
| Thermal (Standard) | ±2.0% – ±3.0% | Good | Fast response, low maintenance | NK300 (NOIKE-AH) |
| Electromagnetic | ±0.5% | Excellent | Viscosity independent | Mag-Flow Switch |
| Mechanical (Paddle) | ±2.0% – ±5.0% | Fair | Lowest initial cost | Traditional Paddle |
4. Why Does Field Accuracy “Shrink”? (Installation Guide)
Even a high-precision device like the NK600 can underperform if installed incorrectly.
- Straight Pipe Requirements: Turbulence is the enemy of precision. Always ensure an upstream straight run of ≥ 5D and downstream of ≥ 3D (D = Pipe Diameter).
- Media Cleanliness: While the NK300 lacks moving parts to jam, heavy scaling on the probe can insulate the sensor, affecting thermal conductivity and response time.
- Electrical Interference: To combat EMI from VFDs and large motors, the NOIKE-AH series features enhanced anti-interference circuitry, ensuring a clean, reliable output signal.
5. Selection Strategy: Choosing the Right Precision
- Basic Protection: For simple cooling water loops, the NOIKE-AH NK300 provides a reliable, cost-effective safety net.
- Precision Process Control: In pharmaceutical formulation, lab-grade ultrapure water, or high-value laser cooling, the NK600 is recommended for its superior repeatability and temperature compensation.
- Smart Maintenance: Opt for products with LED real-time displays and multi-signal outputs (PNP/NPN/Analog). This allows for predictive maintenance before accuracy degradation leads to downtime.
Conclusion: Accuracy is the Industrial Bottom Line
In the world of Petrochemicals, Semiconductors, and Smart Water Management, a 0.5% accuracy gap can mean the difference between a successful batch and a total loss. Choosing NOIKE-AH (臬克) flow switches isn’t just about buying a meter—it’s about hiring a high-precision sentinel for your production line.

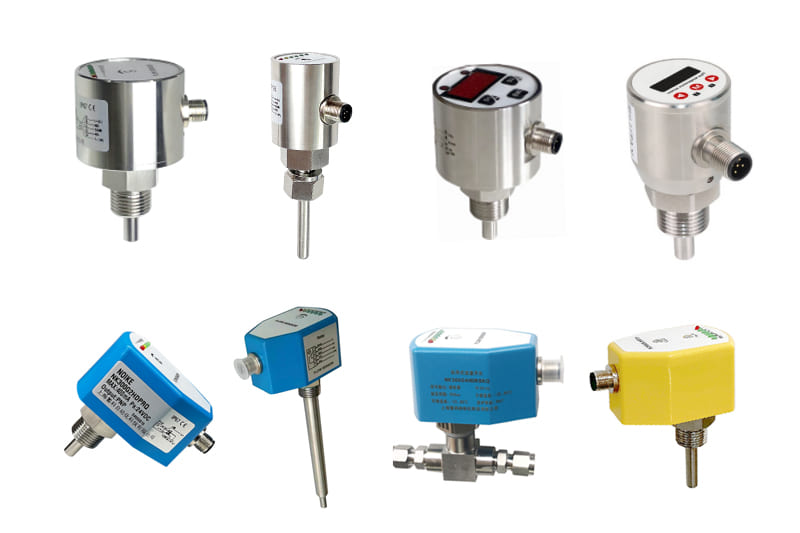

Flow Switch
In industrial automation and fluid control, thermal flow switches are widely used in various critical scenarios. For example, in laser equipment cooling systems, semiconductor manufacturing ultrapure water circulation, and dry-run protection for chemical pumps, flow switches can monitor the flow status of cooling water or liquids in real time. Once a flow anomaly or interruption occurs, the equipment can immediately trigger protection, effectively preventing the “two-second disaster” such as equipment burnout caused by cooling failure.
