Product Overview

The NOIKE-AH Horizontal Screw-Wing Mechanical Water Meter is engineered for DN40–DN300 pipelines, providing accurate and reliable measurement for municipal, industrial, and commercial water distribution systems. Designed with a horizontal screw-wing (helical turbine) measuring mechanism, it delivers stable performance over a wide flow range while maintaining low pressure loss.

The meter features a detachable measuring element for simplified maintenance, a rotatable register for easy reading, and supports remote data transmission, making it suitable for both conventional and smart water metering projects.

Key Features

• Original SENSUS Meter Body
  • Built with a complete original SENSUS meter body for reliable and stable performance.
• Hydraulically Balanced Screw-Wing Impeller
  • The spiral-wing impeller is hydraulically dynamically balanced (patent protected) to improve measurement stability and service life.
• Flow Error Adjustment Device
  • Equipped with a patented flow error adjustment mechanism for enhanced calibration accuracy.
• Rotatable Register
  • The counter can be rotated for convenient reading from different installation angles.
• Low Pressure Loss
  • Optimized flow channel design minimizes pressure loss while maintaining high measurement accuracy.
• Detachable Structure
  • The removable measuring element allows easy maintenance and replacement without removing the entire meter body.
• Remote Data Transmission
  • Supports integration with remote meter reading and smart water management systems.

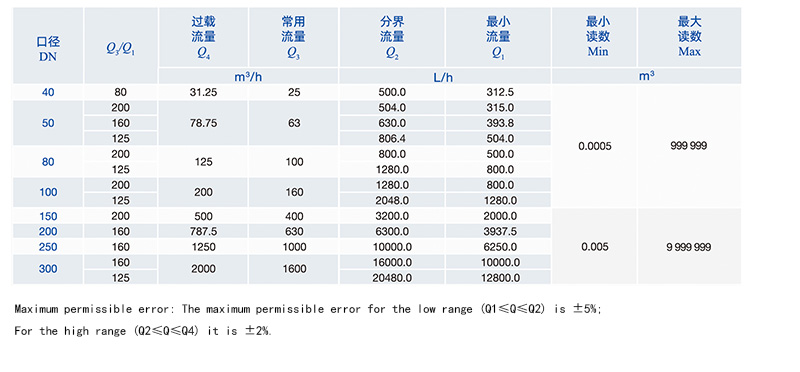

Technical Specifications

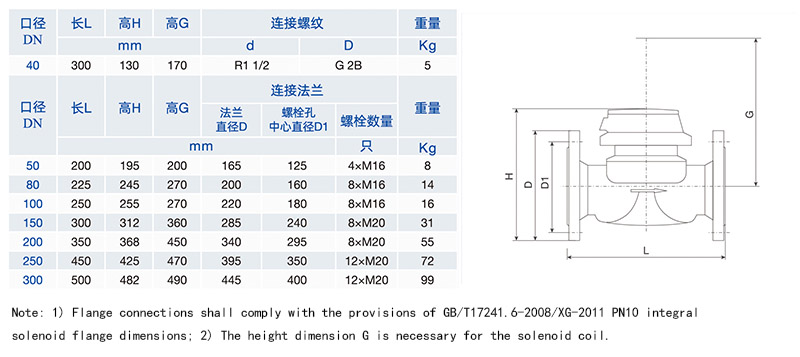

Note: Flow parameters, external dimensions, and product weight are for reference only. Actual specifications shall prevail.

Typical Applications

The Horizontal Screw-Wing Mechanical Water Meter is suitable for:

• Municipal water supply systems
• Industrial water distribution
• Commercial buildings
• Water treatment plants
• Irrigation systems
• Utility water networks
• District metering areas (DMA)
• Smart water management projects

Advantages

• High measurement accuracy
• Excellent low pressure loss
• Stable performance over a wide flow range
• Convenient maintenance with detachable structure
• Easy-to-read rotatable register
• Long service life
• Remote data transmission capability
• Suitable for large-diameter pipelines

Why Choose NOIKE-AH?

NOIKE-AH provides reliable mechanical and smart water metering solutions for municipal, commercial, and industrial applications. Our horizontal screw-wing water meters combine durable construction, accurate measurement, and smart metering compatibility to support efficient water resource management.

FAQ

1. What pipe sizes are available?

The Horizontal Screw-Wing Mechanical Water Meter is available in DN40 to DN300.

2. What is the advantage of the screw-wing measuring mechanism?

The hydraulically balanced screw-wing impeller provides stable performance, improved measurement accuracy, and long service life, especially in high-flow applications.

3. Why is the measuring element detachable?

The detachable structure allows maintenance or replacement of the measuring unit without removing the entire meter body from the pipeline, reducing downtime and maintenance costs.

4. Can the register be adjusted for easier reading?

Yes. The mechanical register can be rotated to provide a clear reading from different installation positions.

5. Does the meter support remote reading?

Yes. It supports remote data transmission and can be integrated into smart water metering systems.

6. Is the pressure loss low?

Yes. The optimized hydraulic design minimizes pressure loss while maintaining reliable measurement performance.

7. Where is this water meter commonly used?

It is widely used in municipal water supply, industrial facilities, commercial buildings, irrigation systems, water treatment plants, and utility distribution networks.

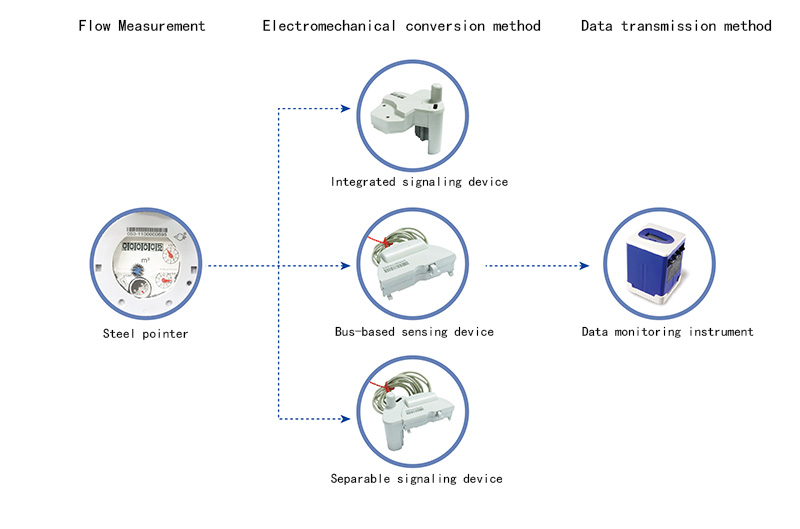

Data remote transmission
