Removable horizontal wing type water meter DN50-500

Product Overview

The NOIKE-AH Removable Horizontal Woltman Water Meter is designed for accurate measurement of high-volume cold water flow in pipelines from DN50 to DN500. Featuring a detachable measuring element, the meter allows easy maintenance and replacement without removing the entire meter body, significantly reducing downtime and maintenance costs.

With low pressure loss, excellent interchangeability, and support for remote data transmission, it is widely used in municipal water supply, industrial facilities, commercial buildings, and large-scale water distribution systems.

---

Key Features

• Detachable Measuring Element
  • The removable measuring mechanism enables quick maintenance and replacement without dismantling the pipeline.
• Excellent Interchangeability
  • Standardized measuring components provide easy servicing and convenient replacement.
• Low Pressure Loss
  • Optimized hydraulic design minimizes pressure drop while maintaining accurate flow measurement.
• Remote Reading Ready
  • Reserved interface supports future remote meter reading and smart water management systems.
• Remote Data Transmission
  • Compatible with intelligent water metering platforms for automatic data collection and monitoring.

---

Technical Specifications

Note: Flow parameters, external dimensions, and product weight are for reference only and are subject to the actual product specifications.

---

Typical Applications

The Removable Horizontal Woltman Water Meter is suitable for:

• Municipal water supply networks
• Industrial water distribution
• Commercial buildings
• Water treatment plants
• Irrigation systems
• District water distribution
• Utility metering
• Smart water management projects

---

Advantages

• High measurement accuracy
• Easy maintenance with removable measuring element
• Low pressure loss
• Excellent component interchangeability
• Long service life
• Low maintenance costs
• Remote reading compatibility
• Suitable for large-diameter pipelines

---

Why Choose NOIKE-AH?

NOIKE-AH offers high-quality mechanical and smart water metering solutions for municipal, industrial, and commercial applications. Our removable Woltman water meters are designed to improve maintenance efficiency, reduce operating costs, and support modern smart water management systems.

---

FAQ

1. What pipe sizes are available?

The Removable Horizontal Woltman Water Meter is available in DN50 to DN500.

2. What is the benefit of a detachable structure?

The removable measuring element allows maintenance or replacement without removing the entire meter body from the pipeline, reducing maintenance time and costs.

3. Is the meter suitable for municipal water systems?

Yes. It is widely used in municipal water supply networks, industrial facilities, commercial buildings, and water treatment plants.

4. Does the meter support remote reading?

Yes. It includes a reserved interface for future remote meter reading and smart metering upgrades.

5. Does the meter have a low pressure loss?

Yes. Its optimized hydraulic design minimizes pressure loss while maintaining accurate measurement.

6. Can the meter transmit data remotely?

Yes. It supports integration with remote data transmission systems for automated meter reading and water management.

7. Why choose a Woltman water meter?

Woltman water meters are ideal for large-diameter pipelines and high-flow applications, offering reliable performance, low maintenance, and long service life.

---

Technical parameters

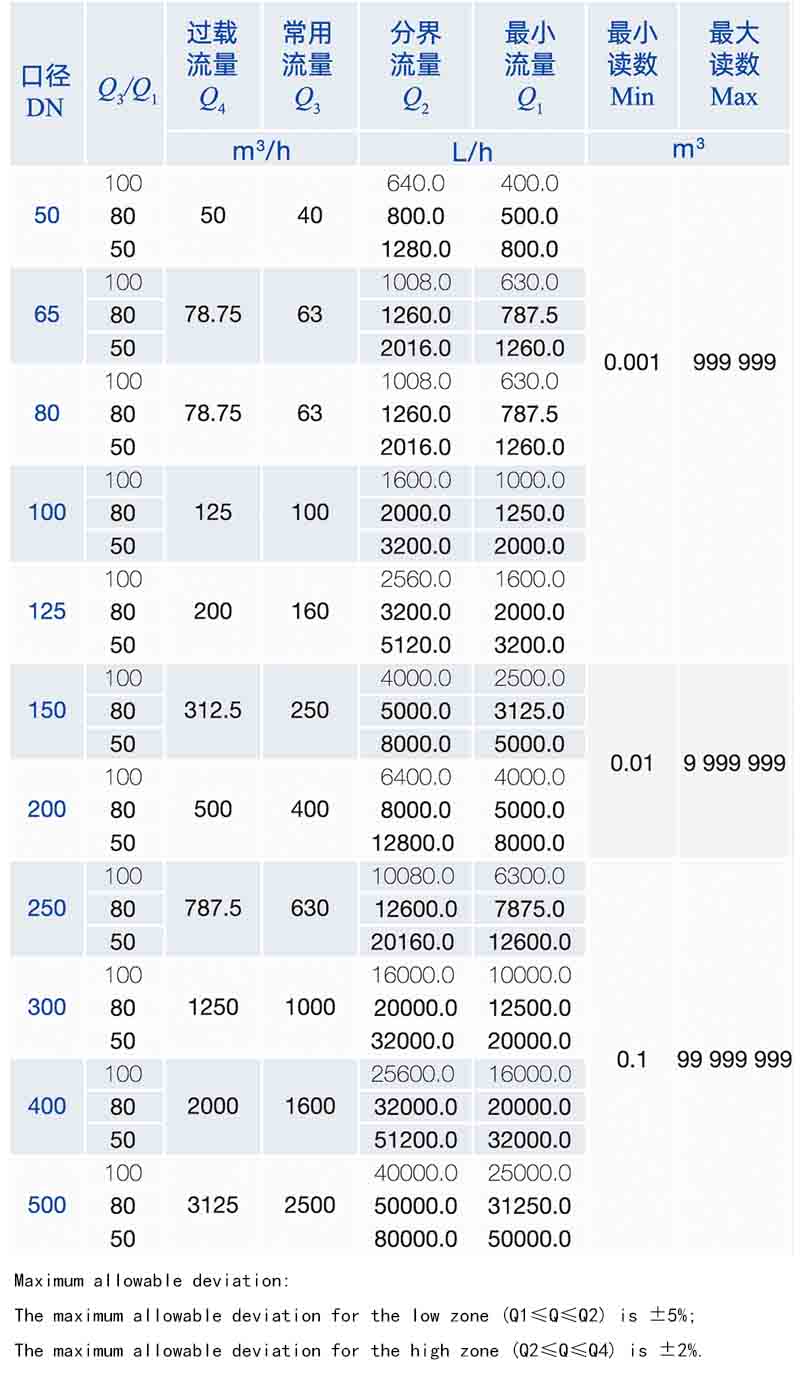

Flow parameters

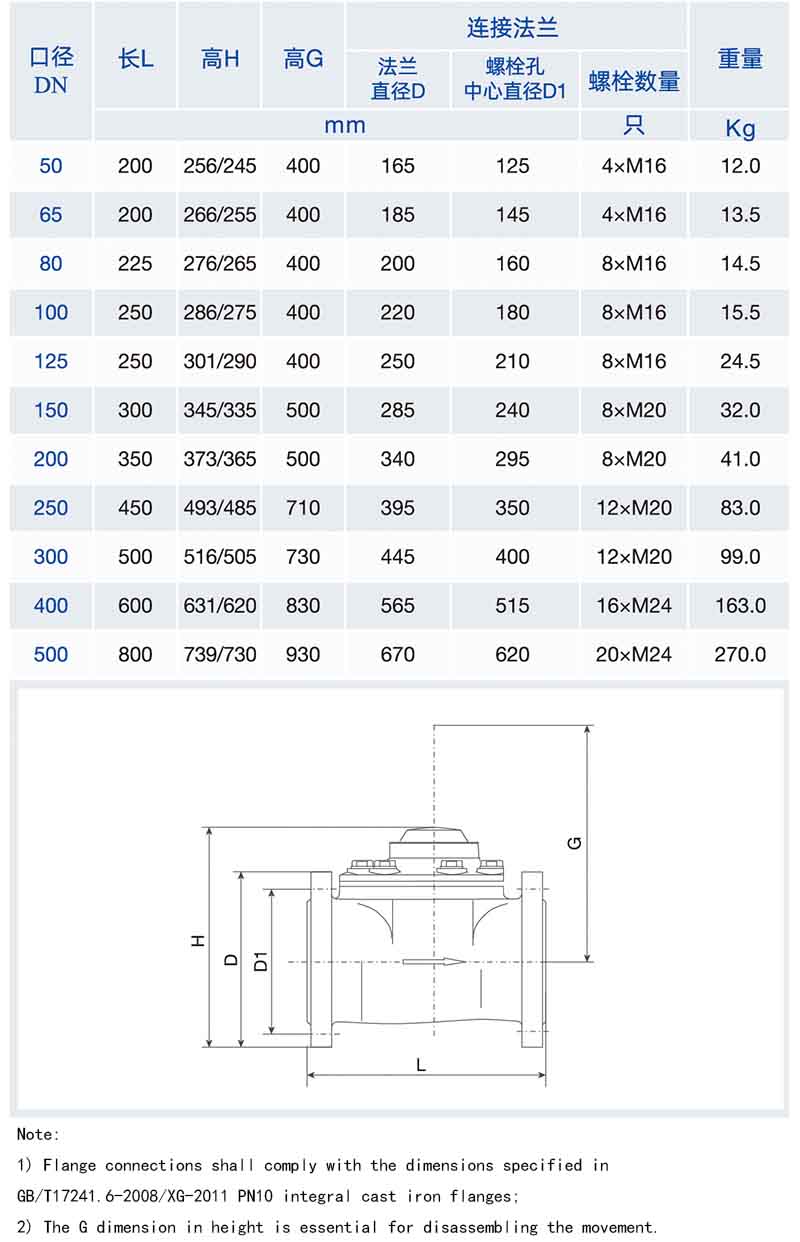

External dimensions

Note: The external dimensions and weight are for reference only, subject to the actual product.

Product features

Detachable structure design

Good versatility

Pressure loss is small

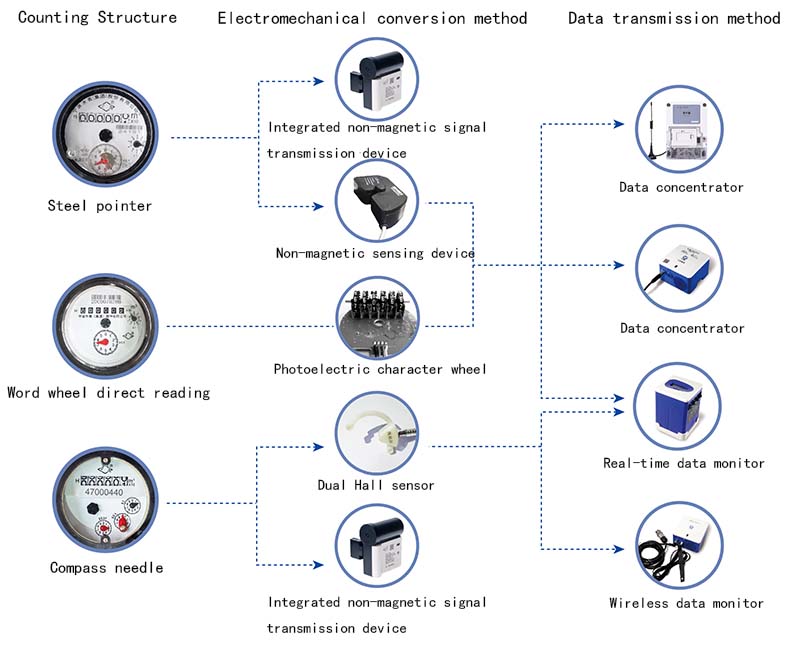

Reserved for remote transmission

Data remote transmission
