Product Overview

The NOIKE-AH Rotor-Type Liquid-Sealed Water Meter is a small-diameter mechanical water meter designed for accurate water consumption measurement in residential, commercial, and industrial applications. Available in DN15 to DN50, this series features a liquid-sealed register for clear readings and reliable long-term performance.

To meet different installation environments and project requirements, the water meter is available with multiple housing materials, register cover designs, installation configurations, and meter reading solutions.

---

Key Features

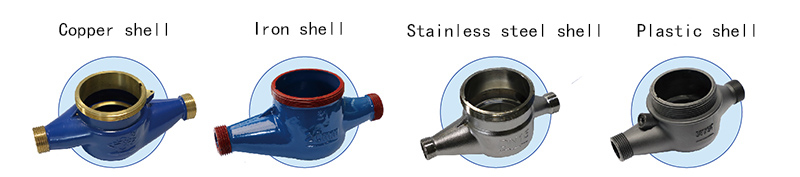

Multiple Housing Materials

The water meter can be manufactured using different materials to suit various installation conditions, including:

• Copper
• Cast iron
• Stainless steel
• Plastic

Components such as the meter body, register ring, and union nut are available in multiple material options.

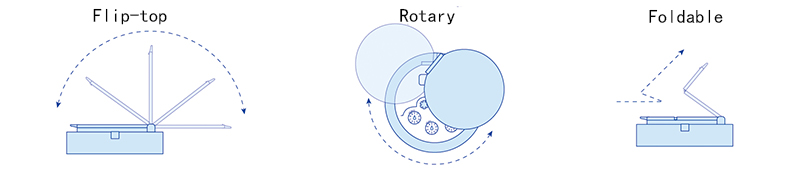

Multiple Register Cover Designs

Various register cover types are available according to different installation environments, including:

• Flip (clamshell) cover
• Rotary cover
• Folding cover

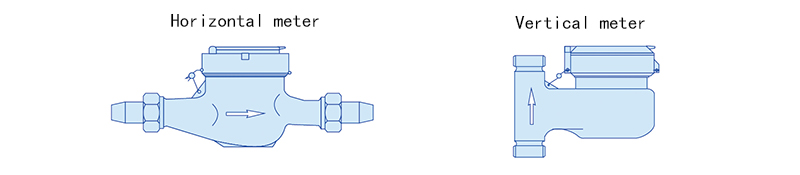

Flexible Installation Options

The DN15–DN50 series is available in:

• Horizontal installation
• Vertical installation

allowing flexible installation in different pipeline systems.

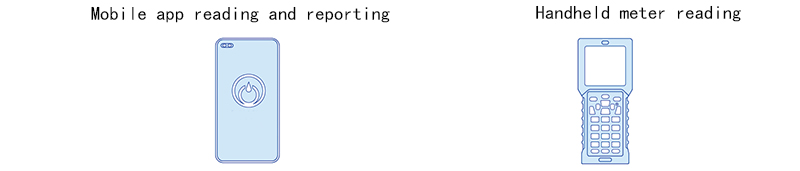

Multiple Meter Reading Methods

To meet different system requirements, the water meter supports various reading tools, including:

• Mobile App reading
• Handheld meter reading device

---

Technical Specifications

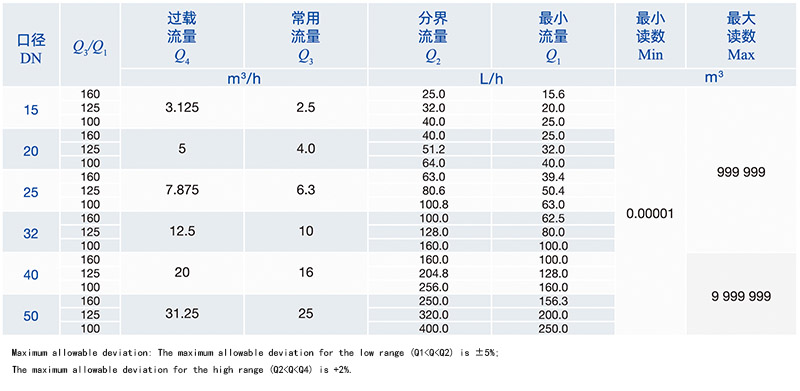

Flow Parameters

Flow performance is available according to the corresponding model specifications.

Performance Parameters

Performance specifications vary by model and application requirements.

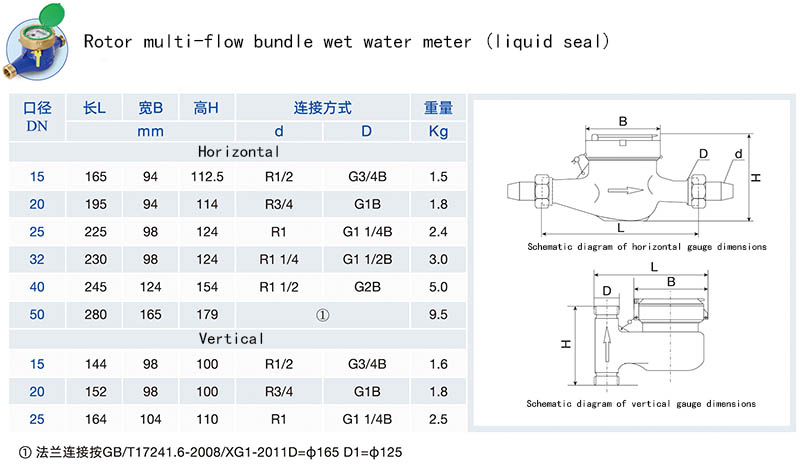

External Dimensions

Overall dimensions are available according to the selected model.

Note: External dimensions and product weight are for reference only. Actual specifications are subject to the delivered product.

---

Typical Applications

The NOIKE-AH rotor-type liquid-sealed water meter is suitable for:

• Residential water supply
• Commercial buildings
• Municipal water distribution
• Industrial water measurement
• Property management
• Building services
• Water utility systems

---

Product Advantages

• Liquid-sealed register for clear and reliable readings
• Multiple body material options
• Various register cover styles
• Horizontal and vertical installation available
• Compatible with multiple meter reading methods
• Suitable for DN15–DN50 pipeline systems

---

Frequently Asked Questions (FAQ)

What pipe sizes are available?

This water meter series is available for DN15 to DN50 pipelines.

What housing materials are available?

The meter body and related components can be manufactured from copper, cast iron, stainless steel, or plastic, depending on project requirements.

Can the meter be installed vertically?

Yes. Both horizontal and vertical installation options are available.

What meter reading methods are supported?

The water meter supports multiple reading methods, including mobile app and handheld meter reading devices, depending on the application.

Are different register cover styles available?

Yes. The series offers flip (clamshell), rotary, and folding register cover designs to suit different installation environments.

Are the dimensions fixed?

The published dimensions are for reference only. Actual dimensions and weight may vary depending on the selected model.

---

A variety of watch case materials to choose from

The case, ring cover, union nut, etc. can be made of various materials such as copper, iron, stainless steel, and plastic.

Multiple types of watch covers to choose from

Based on different installation environments, various types of meters, such as clamshell, rotary, and folding types, are available.

Multiple installation types are available

This series of water meters is available in both horizontal and vertical types to meet the installation needs of different environments.

A variety of reading tools are available

Based on different reading environments and system statuses, various reading tools such as mobile apps and handheld devices are provided.

---

Technical parameters

Flow parameters

---

External dimensions

Note: The external dimensions and weight are for reference only, subject to the actual product.

---

Performance parameters
