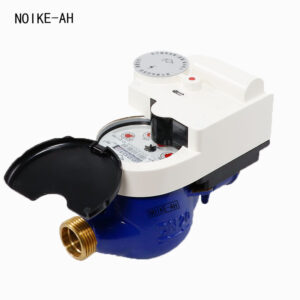

NOIKE-AH Wireless Remote Reading Water Meter

Wireless Remote Reading Water Meter |Small-Diameter Smart Water Meter

Brand: NOIKE-AH
Range:‌ DN15-DN50

Specification

Product Overview

The Wireless Remote Reading Water Meter is an intelligent small-diameter smart water meter designed for DN15–DN50 water supply systems. It combines a high-precision mechanical water meter with a wireless communication module, enabling automatic meter reading (AMR), real-time data transmission, and intelligent water consumption management without manual readings.

The meter is suitable for residential, commercial, municipal, and industrial water metering applications, helping utilities improve operational efficiency while reducing labor costs.

Key Features

Wireless automatic meter reading (AMR)
Real-time water consumption monitoring
High-accuracy metering with stable long-term performance
Low-power design with extended battery life
Supports remote data collection and management
Tamper-resistant construction for reliable operation
Compact design for easy installation
Suitable for smart water utility and IoT applications
Compatible with centralized meter management platforms

Typical Applications

The wireless remote water meter is widely used in:

Residential communities
Apartment buildings
Commercial buildings
Schools and universities
Hospitals
Hotels
Industrial parks
Municipal water supply systems
Smart city infrastructure

Technical Features

Item	Specification
Meter Type	Wireless Remote Reading Water Meter
Pipe Size	DN15–DN50
Communication	Wireless remote transmission
Reading Method	Automatic remote meter reading
Installation	Horizontal or vertical (depending on model)
Medium	Clean cold water
Power Supply	Built-in long-life lithium battery
Display	Mechanical register with electronic data acquisition
Protection	Suitable for outdoor water meter environments

Working Principle

The water flowing through the meter drives the internal measuring mechanism, accurately recording water consumption. The electronic module converts the mechanical readings into digital data and transmits them wirelessly to the utility management platform.

This enables:

Automatic meter reading
Remote consumption monitoring
Centralized billing management
Historical data storage and analysis
Smart water network management

Advantages

Eliminates manual meter reading
Improves billing accuracy
Reduces operating and maintenance costs
Enables real-time water consumption analysis
Supports digital utility management
Long battery service life
Reliable wireless communication
Easy installation and maintenance

Installation Notes

Install according to the flow direction marked on the meter body.
Flush the pipeline before installation to remove debris.
Avoid installation in locations with excessive vibration or flooding.
Ensure adequate wireless signal coverage at the installation site.
Follow local water utility installation standards.

FAQ

What pipe sizes are available?

The standard wireless remote water meter is designed for DN15–DN50 pipelines.

Does the meter require manual reading?

No. The meter supports automatic wireless remote meter reading, eliminating routine manual readings.

Can the meter upload data automatically?

Yes. The wireless communication module automatically transmits consumption data to the remote management platform.

Is the meter suitable for smart city projects?

Yes. It is designed for smart water utility systems, IoT water management, and municipal water supply networks.

Where can this water meter be installed?

It is suitable for residential buildings, commercial properties, schools, hospitals, hotels, industrial facilities, and municipal water distribution systems.

Technical parameters

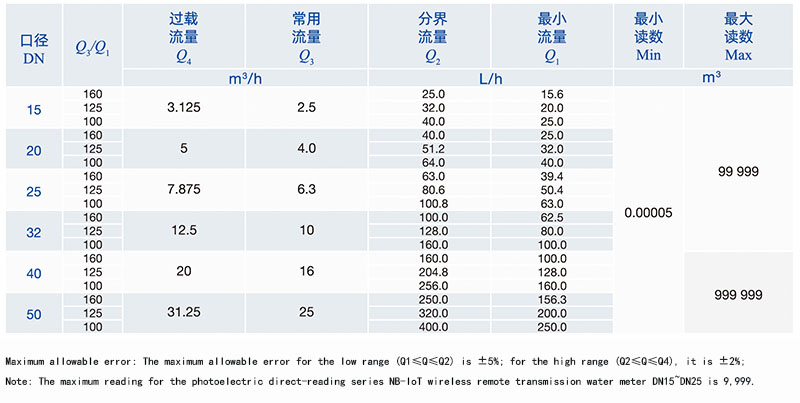

Flow parameters

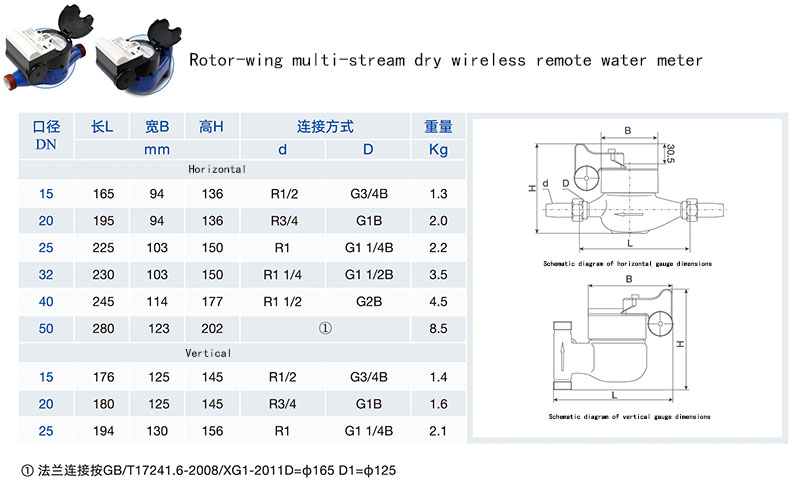

External dimensions

Note: The external dimensions and weight are for reference only, subject to the actual product.

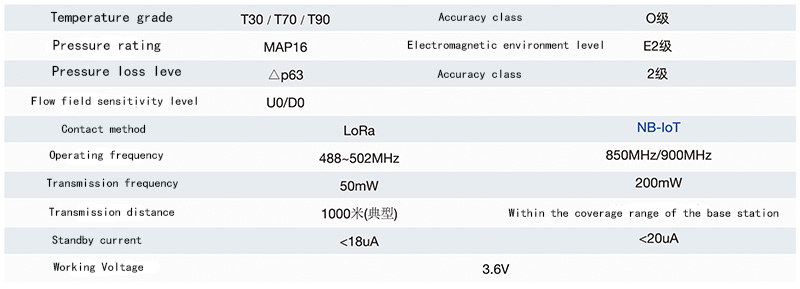

Performance parameters

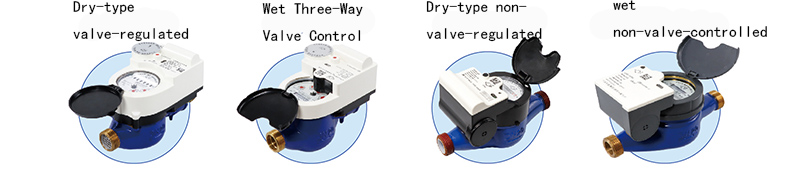

Water metering part (base meter)

Based on the original choices of meter materials, covers, and installation methods, the base meter offers two types of meters: dry valve control and wet valve control, as well as dry non-valve control and wet non-valve control.

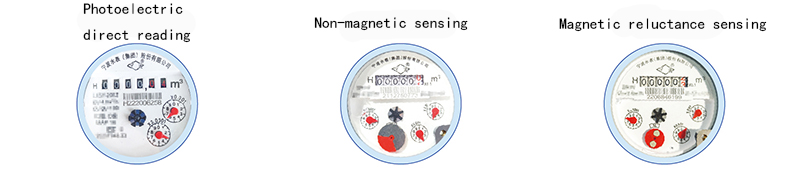

Electromechanical conversion part

It provides various electromechanical conversion methods such as photoelectric direct reading, non-magnetic pulse, and magnetoresistive sensing to meet different needs.

Data remote transmission part

It provides various wireless remote transmission methods such as NB-IoT and LoRa to meet different communication environments.

Wireless Wet Valve-Controlled Cold Water Meter
