Tuning Fork Level Switch NS210 | Universal Liquid & Solid Level Limit Switch
- Brand：NOIKE-AH
- Model：NS210
Specification
Product Overview
The Tuning Fork Level Switch NS210 is a universal level limit switch designed for reliable point level detection of both liquids and bulk solids. It operates using a piezoelectric crystal that excites the tuning fork into vibration. When the fork is immersed in liquid or covered by solid material, the vibration frequency changes. This change is detected electronically to generate a switching signal.
The measuring principle is not affected by dielectric constant, turbulence, agitation, bubbles, vibration, or other process disturbances, making the NS210 suitable for complex industrial applications.
With no moving mechanical parts, the NS210 requires minimal maintenance and provides stable long-term operation in demanding environments.
Why Choose the Tuning Fork Level Switch NS210 ?
Selecting the right level switch is essential for improving process reliability and reducing maintenance.
The NS210 offers a vibration-based measuring principle that is suitable for both liquid and solid level detection without requiring calibration for different media densities or electrical properties. Its maintenance-free design, relay output, optional AC/DC power supply, and corrosion-resistant stainless steel wetted parts make it a practical solution for industrial process control.
Typical Applications
The Tuning Fork Level Switch NS210 is suitable for:
- Hydraulic systems
- Lubrication systems
- Pump protection
- Cooling systems
- Pulp and paper processing
- Water treatment
- Food and beverage processing
Product Features
- Universal level limit switch for liquids and solids
- Piezoelectric tuning fork measuring principle
- No moving mechanical parts
- Unaffected by medium density or electrical characteristics
- Stainless steel wetted parts for corrosion resistance
- Optional AC or DC power supply
- Relay output
- Selectable Normally Open (NO) or Normally Closed (NC) output
- Suitable for liquid and bulk solid level detection
- Available with compact or rugged electronic housing
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Medium | Liquid or solid particles |
| Minimum Medium Density | ≥0.6 g/cm³ |
| Pressure Rating | 20 bar |
| Adjustable Delay | 1–20 s (Rugged version only) |
| Response Time | 1 second |
| DC Power Supply | 24V ±10% DC |
| AC Power Supply | 110Vac or 220Vac |
| Switch Output | Relay (NO/NC configurable) |
| Load Capacity | AC220V (110V)/3A, DC |
| Wiring Protection | Reverse polarity protection |
| Power Consumption | ≤1W |
| Ambient Temperature | -20°C to +80°C |
| Medium Temperature | -40°C to +150°C |
| Compact Housing | Stainless Steel 304 |
| Rugged Housing | Die-cast Aluminum |
| Fork Material | Stainless Steel 316 |
| Protection Rating | IP65 |
| Electrical Connection | Terminal wiring (Compact), Solenoid valve plug (Rugged) |

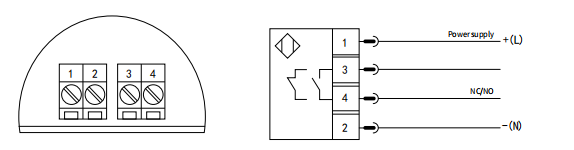

Wiring diagram

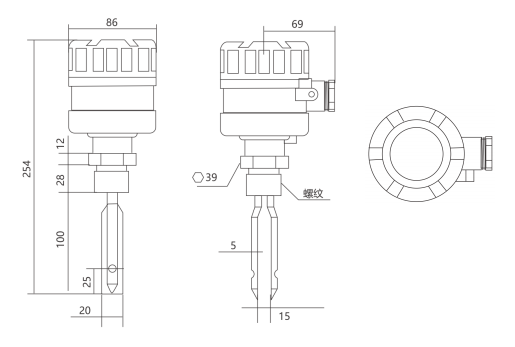

Inch diagram (mm)
Product Summary
The Tuning Fork Level Switch NS210 provides reliable point level detection for liquids and bulk solids using vibration technology. Its maintenance-free design, relay output, optional AC/DC power supply, and resistance to process disturbances make it suitable for hydraulic systems, water treatment, food processing, lubrication systems, and other industrial applications.
