Submersible Level Transmitter ND101

Product Overview

The Submersible Level Transmitter ND101 utilizes a high-performance diffused silicon piezoresistive pressure sensor as its sensing element to provide accurate and reliable liquid level measurement.

The sensor measures the hydrostatic pressure generated by the liquid column, which is proportional to the depth of the liquid. Through an integrated signal conditioning circuit, the measured pressure is converted into a standard current or voltage output signal, establishing a precise linear relationship between the output signal and the liquid level.

Featuring a compact design, high measurement accuracy, and IP68 waterproof protection, the transmitter can be directly immersed into the liquid for continuous level measurement. Its simple installation and stable performance make it suitable for a wide range of industrial liquid level monitoring applications.

---

Operating Principle

The Submersible Level Transmitter measures ND101 liquid level based on the hydrostatic pressure principle.

As the liquid level changes, the pressure exerted on the submerged sensor changes proportionally. The built-in diffused silicon piezoresistive sensor converts this pressure into an electrical signal, which is processed by the internal signal conditioning circuit and output as a standard analog signal (current or voltage).

Because hydrostatic pressure is directly proportional to liquid depth, the transmitter accurately determines the liquid level for continuous monitoring and control.

---

Product Features

• High-performance diffused silicon piezoresistive pressure sensor
• High measurement accuracy
• Compact and space-saving design
• Direct immersion installation
• Easy installation and maintenance
• Multi-layer protection structure
• High protection capability
• IP68 waterproof design
• Multiple output signal options
• Stable long-term performance
• Anti-corrosion stainless steel construction
• Suitable for various industrial applications
• Optional customized materials for special media

---

Product Applications

The Submersible Level Transmitter ND101 is widely used in:

• Petroleum industry
• Chemical industry
• Power plants
• Municipal water supply systems
• Hydrological monitoring
• Water treatment facilities
• Industrial storage tanks
• Reservoir level monitoring
• Groundwater monitoring
• Process liquid level control

---

Technical Specifications

Measurement Performance

---

Electrical Specifications

---

Temperature Specifications

---

Mechanical Specifications

---

Materials

---

Protection Rating

---

Wiring Diagram

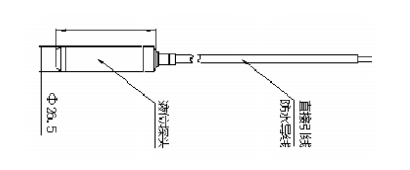

Product dimension diagram (mm)

Product Advantages

The Submersible Level Transmitter ND101 combines a high-performance diffused silicon pressure sensor, direct immersion measurement, and IP68 waterproof protection to deliver stable and accurate liquid level monitoring in demanding industrial environments. Its compact design, multiple signal output options, corrosion-resistant construction, and excellent long-term stability make it an ideal solution for continuous level measurement.

---

Typical Applications

The Submersible Level Transmitter ND101 is commonly installed in:

• Water tanks
• Deep wells
• Reservoirs
• Rivers and lakes
• Sewage treatment plants
• Chemical storage tanks
• Oil storage tanks
• Municipal water systems
• Industrial process tanks
• Hydrological monitoring stations

---

Frequently Asked Questions (FAQ)

How does the Submersible Level Transmitter measure liquid level?

The transmitter measures the hydrostatic pressure generated by the liquid column. The internal diffused silicon sensor converts pressure into an electrical signal, which is then output as a standard current or voltage signal corresponding to the liquid level.

---

What is the maximum measuring range?

The measuring range is available from 0–0.5 m up to 200 m water column, depending on the selected model.

---

What output signals are available?

The transmitter supports multiple industrial output signals, including:

• 4–20 mA
• 1–5 V
• 0–5 V
• 0–10 V
• 1–10 V

---

Is the transmitter suitable for outdoor or underwater installation?

Yes. The transmitter features an IP68 protection rating, allowing continuous immersion and reliable operation in harsh industrial environments.

---

What media is the transmitter compatible with?

The standard model is suitable for media compatible with 304 stainless steel. Customized wetted materials are available for corrosive or special liquids.

---

Why Choose the Submersible Level Transmitter ND101?

The Submersible Level Transmitter ND101 is engineered for precise and reliable liquid level measurement in industrial environments. Featuring a high-performance diffused silicon piezoresistive sensor, IP68 waterproof protection, multiple analog output options, compact immersion design, and excellent long-term stability, it is an ideal choice for water treatment, municipal water supply, petroleum, chemical processing, hydrological monitoring, and industrial storage tank applications.
