Product Overview

The NOIKE-AH Intelligent Vortex Flow Meter LUGB Series measures the flow rate of saturated steam, superheated steam, gases, and liquids using the Karman vortex shedding principle. It is designed for industrial flow measurement where stable performance and reliable signal output are required.

The LUGB Series Intelligent Vortex Flow Transmitter adopts a stress-type vortex sensing structure and can output either pulse frequency signals or 4–20 mA standard analog signals, making it compatible with a wide range of industrial control and automation systems.

Why Choose the Intelligent Vortex Flow Meter LUGB Series?

The LUGB Series provides reliable flow measurement for industrial processes requiring accurate monitoring of steam, gas, and liquid flow.

Key Advantages

• Based on the Karman vortex measurement principle
• Suitable for steam, gas, and liquid applications
• High measurement accuracy
• Stable signal output for industrial control systems
• Pulse or 4–20 mA output options
• Available for standard and high-temperature applications
• Suitable for process automation and flow monitoring

Working Principle

The LUGB Series operates according to the Karman vortex shedding principle.

When fluid flows past the bluff body inside the flow meter, alternating vortices are generated downstream. The frequency of these vortices is proportional to the flow velocity. The sensor detects the vortex frequency and converts it into an electrical signal, allowing the flow rate to be calculated and transmitted to monitoring or control systems.

Typical Applications

The Intelligent Vortex Flow Meter LUGB Series is suitable for flow measurement and process control in:

• Petroleum industry
• Chemical processing
• Metallurgy
• Power generation
• Pharmaceutical manufacturing
• Textile industry
• Municipal water supply
• Natural gas stations
• Industrial utility pipelines
• Steam distribution systems

Key Features

• Karman vortex flow measurement technology
• Measures saturated steam, superheated steam, gas, and liquids
• Stress-type vortex sensor design
• High measurement accuracy
• Stable repeatability
• Pulse frequency or 4–20 mA signal output
• Compatible with industrial automation systems
• Standard and high-temperature versions available

Technical Specifications

Typical Application Example

In industrial steam distribution systems, accurate steam flow measurement is important for process monitoring and energy management. The LUGB Intelligent Vortex Flow Meter can be installed on steam pipelines to provide continuous flow measurement and output pulse or 4–20 mA signals to the plant control system. Its compatibility with industrial automation systems makes it suitable for applications requiring reliable flow monitoring and process control.

Installation Notes

• Select the appropriate meter size according to the pipeline diameter and expected flow range.
• Ensure the measured medium is compatible with the product specifications.
• Follow the recommended installation requirements for vortex flow meters to obtain stable measurement performance.
• Connect the selected pulse or 4–20 mA output according to the control system requirements.

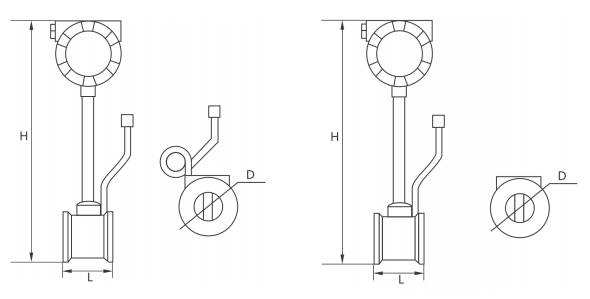

Size Chart (mm)

DN15-DN300 clamp connection type size

Clamp on connection size table

Frequently Asked Questions (FAQ)

What media can the LUGB Series measure?

The LUGB Series is designed for measuring:

• Saturated steam
• Superheated steam
• Gas
• Liquids

What output signals are available?

The flow meter supports:

• Three-wire pulse output
• Two-wire 4–20 mA analog output

What pipe sizes are available?

The available nominal diameters range from DN15 to DN300.

Is a high-temperature version available?

Yes. A high-temperature model supports medium temperatures from 100°C to 350°C.

Which industries commonly use this flow meter?

Typical industries include petroleum, chemical processing, metallurgy, power generation, pharmaceuticals, textiles, municipal water supply, and natural gas distribution.

Summary

The NOIKE-AH Intelligent Vortex Flow Meter LUGB Series is designed for measuring the flow of steam, gas, and liquids based on the Karman vortex principle. It provides high measurement accuracy, stable output signals, and is suitable for industrial flow monitoring and process control applications.
