Product Overview

The NOIKE-AH Horizontal Helical-Screw Water Meter is a high-performance mechanical water meter designed for DN50–DN500 pipelines. Featuring a precision helical-screw measuring mechanism, it provides accurate measurement across a wide flow range, including excellent performance at low flow rates.

The meter incorporates dual flow straighteners, an optimized flow channel, and advanced non-disturbance flow regulation technology to ensure stable and reliable measurement. It also supports optional magnetic or non-magnetic remote transmission, making it suitable for modern smart water metering systems.

Key Features

• High Accuracy at Low Flow Rates
  • Provides precise measurement even under low-flow conditions while maintaining a wide measuring range.
• Wide Rangeability
  • Delivers reliable performance across varying flow rates, making it suitable for fluctuating water demand.
• Dual Flow Straighteners
  • Integrated double rectifiers improve flow stability and reduce installation requirements for upstream straight pipe sections.
• Optimized Hydraulic Design
  • The meter body features a fully machined metal internal cavity combined with non-disturbance flow regulation technology, optimized through computational analysis and simulation.

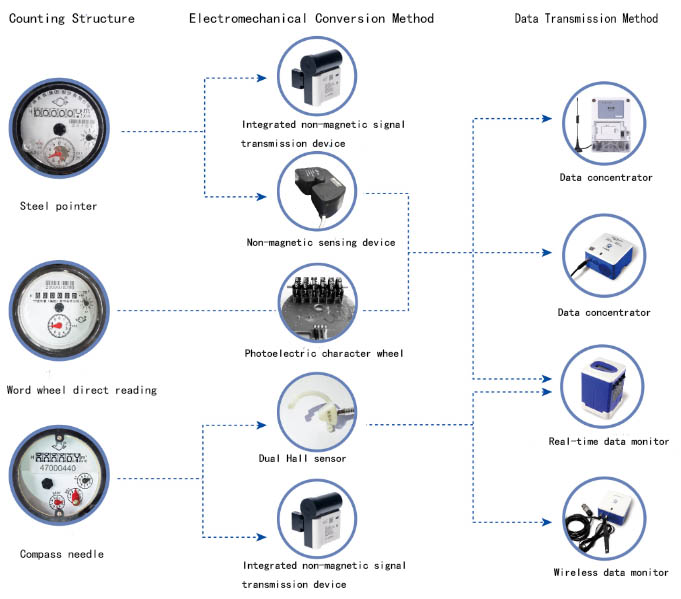

• Remote Reading Ready
  • Reserved interface supports optional magnetic or non-magnetic remote transmission for automatic meter reading (AMR) and smart water management.
• Reliable Mechanical Construction
  • Durable design ensures long-term stability and low maintenance.

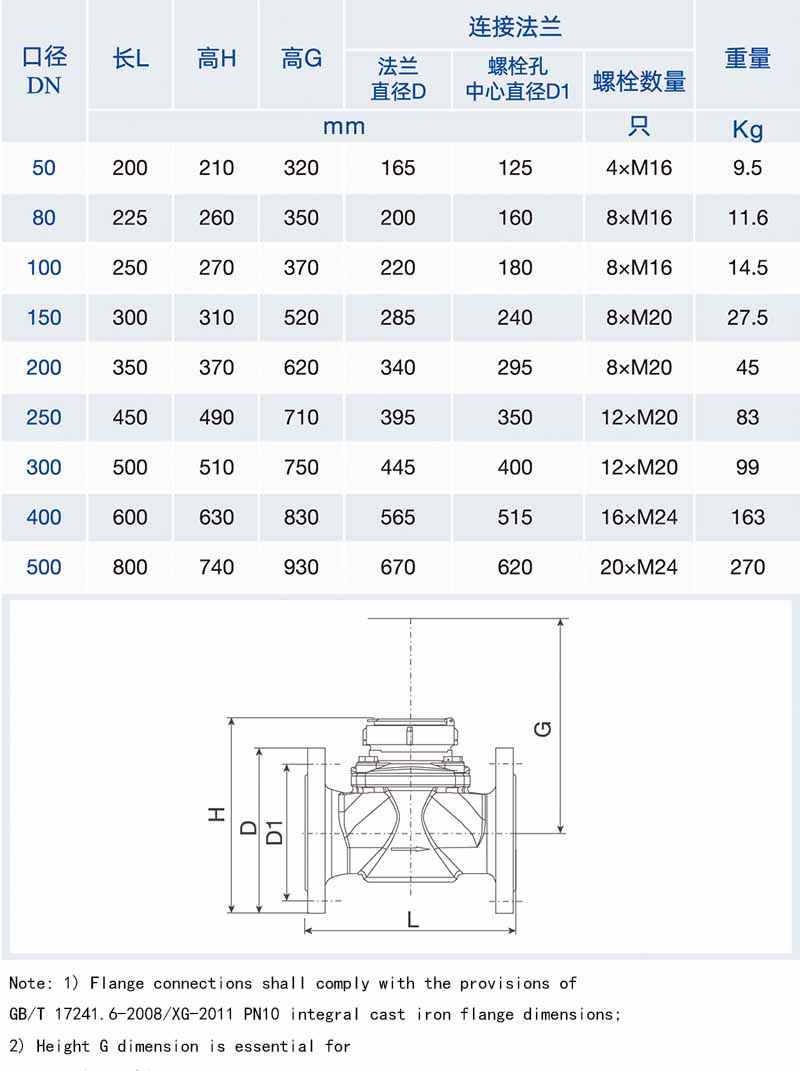

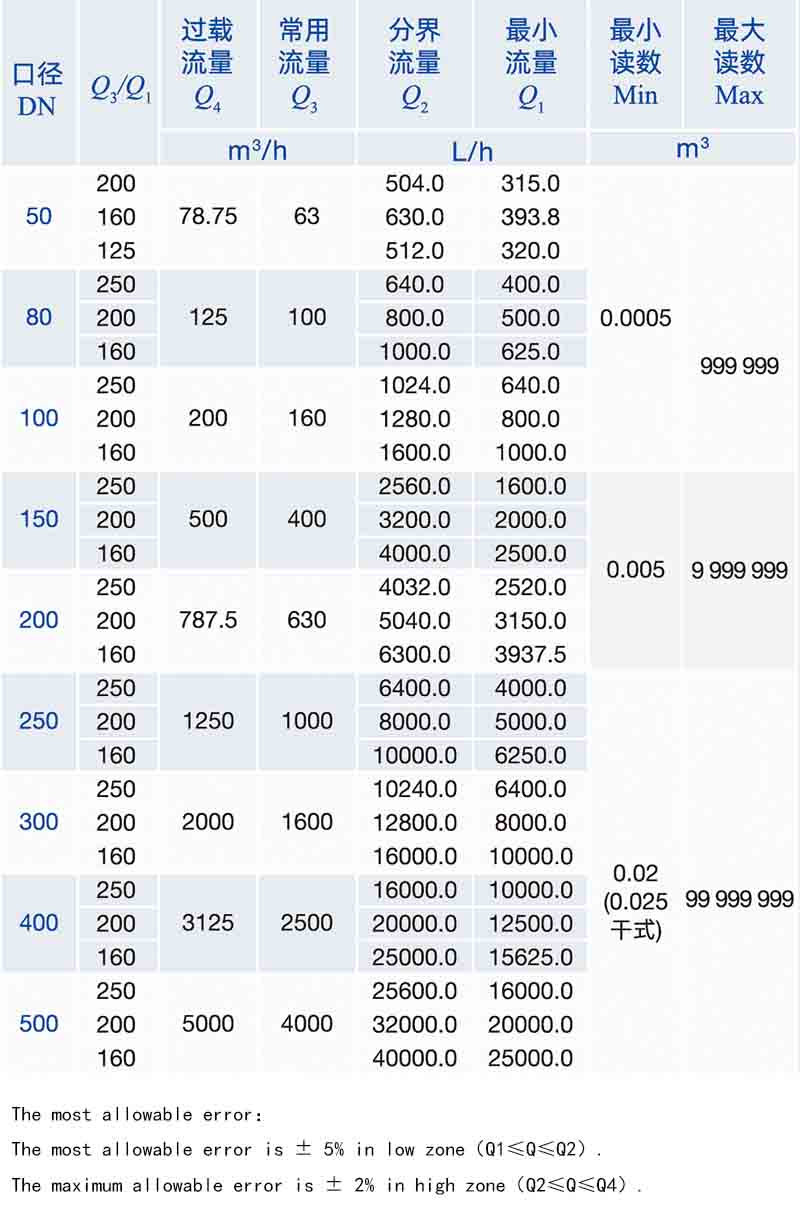

Technical Specifications

Note: Flow parameters, external dimensions, and product weight are for reference only. Actual product specifications shall prevail.

Typical Applications

The Horizontal Helical-Screw Water Meter is suitable for:

• Municipal water supply systems
• Water distribution networks
• Industrial water metering
• Commercial buildings
• Water treatment plants
• Irrigation systems
• Utility water management
• District metering areas (DMA)
• Smart water infrastructure

Advantages

• Accurate low-flow measurement
• Wide measurement range
• Low straight pipe installation requirements
• Optimized hydraulic performance
• Stable long-term operation
• Durable all-metal measuring chamber
• Optional remote reading capability
• Easy integration into smart water management systems

Why Choose NOIKE-AH?

NOIKE-AH offers reliable mechanical and smart water metering solutions designed for municipal, commercial, and industrial applications. Our Horizontal Helical-Screw Water Meters combine precision engineering, robust construction, and smart metering compatibility to help improve operational efficiency and water resource management.

FAQ

1. What pipe sizes are available?

The Horizontal Helical-Screw Water Meter is available in DN50 to DN500.

2. What are the advantages of a helical-screw water meter?

The helical-screw measuring mechanism provides excellent low-flow accuracy, a wide measuring range, and stable long-term performance.

3. Does the meter require long straight pipe sections?

No. The integrated dual flow straighteners reduce the requirement for upstream straight pipe lengths, simplifying installation.

4. Does the meter support remote reading?

Yes. It provides a reserved interface for optional magnetic or non-magnetic remote transmission modules.

5. What is non-disturbance flow regulation technology?

It is an optimized hydraulic design that improves flow stability and measurement accuracy by minimizing flow disturbances inside the meter.

6. Where can this water meter be used?

It is widely used in municipal water supply, industrial facilities, commercial buildings, irrigation systems, water treatment plants, and smart water management projects.

7. Is the meter suitable for smart water systems?

Yes. With its optional remote transmission interface, it can be integrated into AMR and smart water management platforms.
