Electronic Pressure Sensor NT30B | Digital Pressure Switch
- Brand：NOIKE-AH
- Model： NT30B
Specification
Product Overview
The Electronic Pressure Sensor NT30B adopts ceramic or thin-film pressure sensing technology to provide high measurement accuracy and long-term durability. Equipped with a 4-digit LED digital display, the sensor allows users to monitor pressure values in real time and configure parameters directly through the on-site setting menu.
Designed for industrial pressure monitoring and control, the NT30B features fast response, high stability, and flexible installation options. It supports 24VDC or 220VAC power supply, making it suitable for a wide range of automation and process control applications.
Why Choose the Electronic Pressure Sensor NT30B ?
The NT30B combines pressure measurement, digital display, and pressure control in one compact device. Compared with traditional mechanical pressure switches, it offers higher measurement accuracy, faster response, lower hysteresis, and more stable performance. The LED display provides clear pressure readings, while on-site control point configuration enables convenient adjustment without dead zones. Multiple installation threads and power supply options allow the sensor to adapt to various industrial applications.
Typical Applications
The Electronic Pressure Sensor NT30B is suitable for:
- Hydraulic systems
- Pneumatic systems
- Mechanical equipment
- Industrial process control
- Slurry control
- Tank level detection
- Liquid level control
- Filter blockage monitoring
- Leakage monitoring
- Gas and liquid pressure measurement
Product Features
- Ceramic or thin-film pressure sensing technology
- High measurement accuracy and long-term durability
- 4-digit LED digital pressure display
- On-site parameter setting menu
- Higher accuracy than mechanical pressure switches
- Lower hysteresis and faster response
- Stable and reliable performance
- On-site control point configuration
- Dead-zone-free adjustment
- Optional 24VDC or 220VAC power supply
- Standard industrial installation design
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | -0.1 to -0.01 to 100 MPa |
| Pressure Type | Gauge pressure, absolute pressure, sealed gauge pressure |
| Control Accuracy | ±0.2% FS, ±0.5% FS |
| Overload Capacity | 200% FS |
| Long-term Stability | ≤0.1% FS/year |
| Power Supply | 24VDC or 220VAC |
| Display | 4-digit, 0.56-inch LED digital display |
| Display Range | -1999 to 9999 |
| Load Capacity | <220VAC, 3A |
| Response Time | <30 ms |
| Ambient Temperature | -20°C to +85°C |
| Storage Temperature | -40°C to +100°C |
| Relative Humidity | ≤80% |
| Process Connection | M20×1.5, G1/2, G1/4 or customized |
Product dimensions

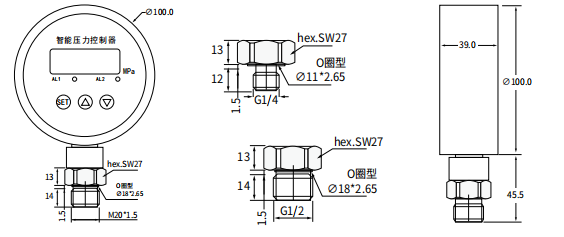

Stainless Steel Version

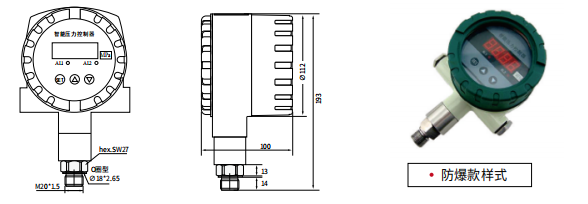

Explosion proof version

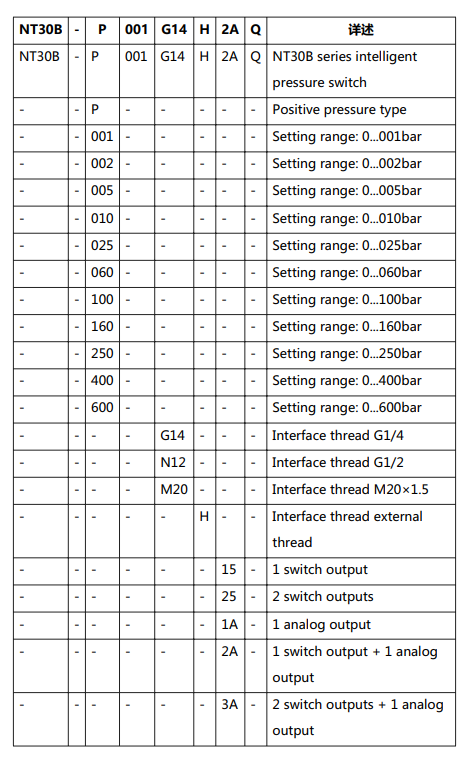

Selection Table
*Note: Special process connections or connection methods can be customized according to requirements
Typical Application Case
In hydraulic and pneumatic control systems, pressure needs to be monitored continuously to maintain stable equipment operation. The NT30B Electronic Pressure Sensor provides real-time pressure display and configurable control points, allowing pressure signals to be integrated into industrial control systems for equipment monitoring and process control.
Product Summary
The Electronic Pressure Sensor NT30B integrates pressure measurement, LED display, and pressure control into one compact device. Featuring ceramic or thin-film sensing technology, high measurement accuracy, configurable control points, and optional 24VDC or 220VAC power supply, it is suitable for hydraulic systems, pneumatic equipment, liquid level monitoring, filter monitoring, and industrial process control.
