Adjustable Mechanical pressure switch NT330 series
- Brand：NOIKE-AH
- Model：NT330
Specification
Adjustable Mechanical pressure switch NT330
Product Overview
The Adjustable Mechanical pressure switch NT330 is designed for reliable pressure monitoring and automatic control in industrial systems. Featuring a compact structure, wide pressure measurement range, and high repeatability, it provides dependable switching performance for a variety of pressure control applications.
The switch utilizes a bellows sensing element combined with a precision mechanical mechanism to detect pressure changes and automatically control electrical circuits. Adjustable hysteresis and silver-plated contacts ensure stable operation and long service life in demanding industrial environments.
Operating Principle
The Adjustable Mechanical pressure switch NT330 incorporates a built-in bellows sensing element and a mechanical switching mechanism.
When the system pressure increases or decreases, the bellows expands or contracts accordingly. This movement works together with the adjustable spring mechanism to generate mechanical displacement.
The displacement is transferred through an internal lever mechanism, which actuates the electrical contacts to open or close the control circuit, enabling automatic pressure monitoring and equipment control.
Product Features
- Compact mechanical design
- Bellows pressure sensing mechanism
- Wide pressure measurement range
- High switching repeatability
- Adjustable hysteresis
- Reliable mechanical switching mechanism
- Silver-plated electrical contacts
- Stable switching performance
- Easy installation
- Suitable for industrial pressure control applications
Product Applications
The Adjustable Mechanical pressure switch NT330 is widely used in:
- Hydraulic systems
- Pneumatic systems
- Industrial machinery
- Air compressor systems
- Water supply systems
- Pressure control systems
- Process automation
- Pump protection
- OEM equipment
- General industrial pressure monitoring
Wiring Diagram
The Adjustable Mechanical pressure switch NT330 uses terminal wiring for electrical connection.
Please refer to the product wiring diagram for the appropriate wiring configuration during installation.

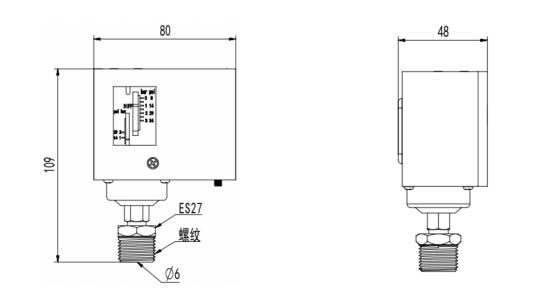

Dimensional drawing (mm)
Technical Specifications
Measurement Performance
| Parameter | Specification |
|---|---|
| Measurement Range | Refer to the specification table |
| Switching Differential (Hysteresis) | Refer to the specification table |
| Accuracy | Refer to the specification table |
Output
| Parameter | Specification |
|---|---|
| Contact Type | Silver-plated Normally Open (NO) and Normally Closed (NC) Contacts |
Contact Rating
| Voltage | Current |
|---|---|
| ≤ DC 42 V | 1 A |
| ≤ DC 115 V | 0.15 A |
| ≤ AC 42 V* | 3 A |
| ≤ AC 125 V* | 3 A |
| ≤ AC 250 V* | 0.5 A |
Note: The original specification lists the last three voltage ratings as “DC.” Based on standard industrial contact ratings, these are commonly specified as AC 42 V, AC 125 V, and AC 250 V. The values above preserve the original information while recommending verification against the official datasheet.
Environmental Specifications
| Parameter | Specification |
|---|---|
| Medium Temperature | -30°C to 100°C |
| Protection Rating | IP33 |
Electrical Connection
| Parameter | Specification |
|---|---|
| Wiring Method | Terminal Wiring |
Process Connection
| Parameter | Specification |
|---|---|
| Thread Connection | M12 × 1.25 |
Materials
| Component | Material |
|---|---|
| Wetted Parts | Nickel-Plated Brass |
| Housing | NBR |
Product Advantages
The Adjustable Mechanical pressure switch NT330 combines a high-sensitivity bellows sensing mechanism, adjustable hysteresis, and silver-plated contacts to deliver reliable pressure switching in industrial systems. Its compact design, wide pressure range, and durable construction make it suitable for long-term operation in hydraulic, pneumatic, and general industrial pressure control applications.
Typical Applications
The Adjustable Mechanical pressure switch NT330 is suitable for:
- Hydraulic power units
- Pneumatic equipment
- Air compressors
- Water pumps
- Pressure vessels
- Industrial automation systems
- Manufacturing equipment
- Process control systems
- OEM machinery
- General pressure monitoring
Frequently Asked Questions (FAQ)
How does the Mechanical Pressure Switch work?
The switch uses a bellows sensing element that expands or contracts as system pressure changes. The resulting mechanical movement actuates an internal lever mechanism to open or close the electrical contacts.
Is the switching hysteresis adjustable?
Yes. The Adjustable Mechanical pressure switch NT330 features adjustable hysteresis, allowing users to optimize switching performance for different applications.
What contact configurations are available?
The switch is equipped with silver-plated Normally Open (NO) and Normally Closed (NC) contacts.
What is the operating temperature range?
The Adjustable Mechanical pressure switch NT330 supports a medium temperature range of -30°C to 100°C.
What industries is this pressure switch suitable for?
It is widely used in hydraulic systems, pneumatic systems, air compressors, water treatment equipment, industrial automation, pump protection, and general pressure control applications.
Why Choose the Adjustable Mechanical pressure switch NT330 ?
The Adjustable Mechanical pressure switch NT330 offers dependable pressure monitoring and automatic control through its bellows-based mechanical sensing mechanism, adjustable hysteresis, and durable silver-plated contacts. Designed for reliable operation in industrial environments, it is an excellent choice for hydraulic systems, pneumatic equipment, air compressors, pumps, and a wide range of pressure control applications.
