Ultrasonic Water Meter NW-3 series | Smart Water Flow Meter | NOIKE-AH
- Brand：NOIKE-AH
- Model：NW-3
Specification
Product Overview
The Ultrasonic Water Meter NW-3 Series is designed in accordance with ISO 4064-1:2005 and GB/T 778.1-2007 standards. It delivers high measurement accuracy, ultra-low power consumption, and stable long-term operation.
Each component of the water meter is designed to meet the IP68 protection standard, allowing reliable operation in demanding environments. The NW-3 Series is suitable for a wide range of water measurement and management applications.
Why Choose the Ultrasonic Water Meter NW-3 Series ?
The NW-3 Series combines ultrasonic measurement technology, high-precision flow monitoring, and IP68 protection to provide reliable water metering under various operating conditions.
Key advantages include:
- High measurement accuracy with ultrasonic technology
- No moving parts for reduced wear
- IP68 protection for harsh environments
- Dual PT1000 temperature measurement for heat metering
- Suitable for different water qualities, including water containing gravel and weeds
- Supports automatic quantitative and timed water management
Typical Applications
The NW-3 Series is widely used in:
- Urban sewage systems
- Water resource management
- Agricultural irrigation
- Garden irrigation management
- Industrial production
- Industrial automation control
- Water distribution systems
Product Features
IP68 Protection
- Entire meter sealed to IP68 protection level
- Every internal component independently designed to meet IP68 requirements
- Continues operating even after long-term submersion
Built-in Quantitative Controller and Time-Based Accumulator
- Automatically starts the controller according to preset schedules
- Supports automatic timed water supply and irrigation
- Accumulates flow within specified time periods for tiered billing or management
Heat Measurement
Dual PT1000 temperature sensors enable heat metering, making the meter suitable for air conditioning and refrigeration systems.
High-Precision Ultrasonic Measurement
- Dual-channel flow measurement
- High measurement accuracy
- No rotating mechanical parts
- Long-term measurement stability
- Suitable for various water qualities, including water containing gravel and weeds
Technical Specifications
| Parameter | Specification |
|---|---|
| Measuring Medium | Water (20°C), Air (0.1013 MPa, 20°C) |
| Water Flow Range | 6–200000 L/h |
| Air Flow Range | 0.05–4000 m³/h |
| Range Ratio | 10:1 (Special Version: 20:1) |
| Accuracy Class | Class 1.5 (Special Version: Class 1.0) |
| Working Pressure | DN15–DN50: PN4.0 MPa (Special: 32 MPa) DN80–DN100: PN1.6 MPa (Special: 25 MPa) |
| Jacket Pressure Rating | 1.6 MPa |
| Medium Temperature | Standard: -80°C to +140°C High Temperature Version: Up to 350°C PTFE Lining Version: ≤85°C |
| Ambient Temperature | -40°C to +120°C (Remote Version: ≤65°C) |
| Medium Viscosity | DN15: ≤5 mPa·s (H15.1–H15.3), ≤30 mPa·s (H15.4–H15.9) DN25: ≤250 mPa·s DN50–DN150: ≤300 mPa·s |
| LCD Display | Instantaneous Flow: 0–50000 Total Flow: 0–99999999 |
| Standard Output | 4–20 mA (2-wire) |
| Pulse Output | Minimum Interval: 50 ms |
| Alarm Output | Collector Open Circuit, MAX100 mA @ 30 VDC |
| Power Supply | Standard: 24 VDC (10.8–36 VDC) Communication Version: 220 VAC (85–265 VAC) Battery Version: 3.6V 4Ah NiMH Battery |
| Flange Standard | HG20592 or User Specified |
| Thread Connection | DIN11851 or User Specified |
| Electrical Interface | M20×1.5, PG11, 1/2″ NPT |
| Overall Height | Standard: 250 mm (Except Special Installations) |
| Protection Rating | IP65 |
| Explosion-Proof Option | ExdⅡCT6 (Optional) |

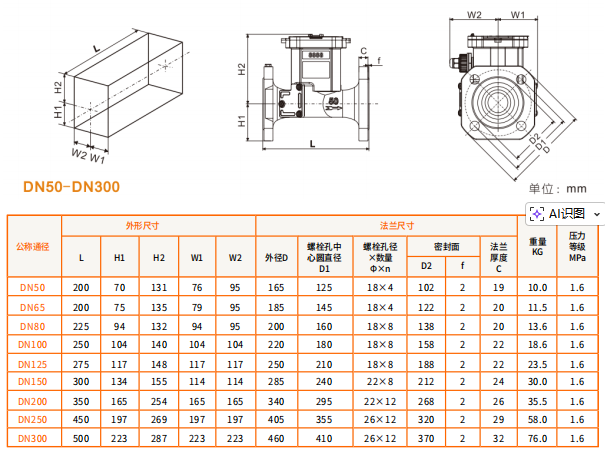

Size Chart (mm)

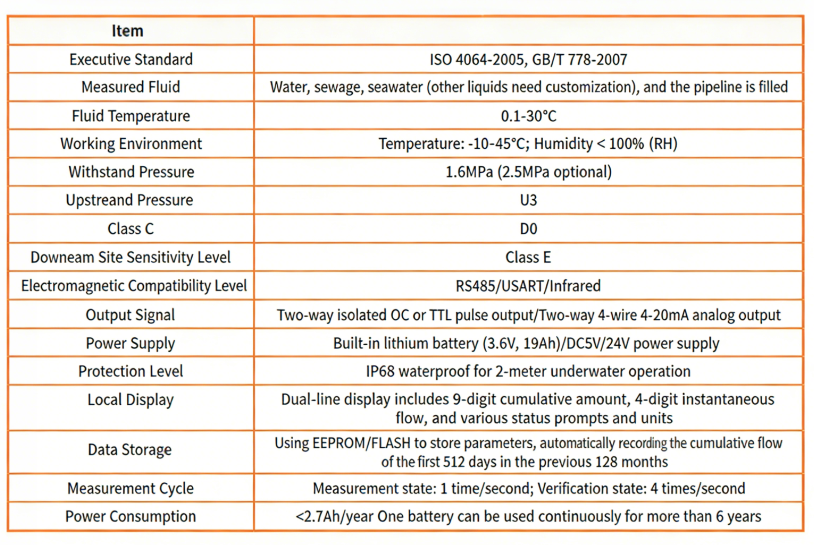

Host parameters
Frequently Asked Questions
What is the Ultrasonic Water Meter NW-3 Series used for?
The NW-3 Series is designed for accurate water flow measurement in municipal water systems, irrigation, industrial production, and automation control applications.
Does the water meter have moving parts?
No. The ultrasonic measurement principle eliminates rotating mechanical components, helping maintain long-term measurement accuracy.
Can the NW-3 Series be used for heat metering?
Yes. The meter supports dual PT1000 temperature sensors, enabling heat metering in HVAC, air conditioning, and refrigeration applications.
Is the water meter suitable for harsh environments?
Yes. The complete meter and its internal components are designed to meet IP68 protection standards, making it suitable for demanding industrial environments.
Practical Application Case: Improving Irrigation Water Management with the NW-3 Ultrasonic Water Meter
A municipal landscaping and agricultural irrigation project required more accurate water usage monitoring across multiple irrigation zones. The previous mechanical water meters experienced measurement deviations during long-term operation due to wear, making it difficult to accurately record water consumption and optimize irrigation schedules.
After upgrading to the NOIKE-AH NW-3 Series Ultrasonic Water Meter, the project benefited from its non-mechanical ultrasonic measurement technology, which eliminates moving parts and reduces wear-related accuracy loss. The meter’s IP68-rated sealed design also enabled stable operation in outdoor valve chambers and humid environments where conventional meters are more susceptible to water ingress.
The built-in quantitative control and time-based accumulation functions allowed the management team to schedule irrigation during off-peak hours and accurately record water usage for each irrigation period. The optional 4–20 mA, pulse, and communication outputs made it easier to integrate the water meter into the existing monitoring system, enabling centralized data collection and remote supervision.
