Ultrasonic Flow Meter NG800

Product Overview

The Ultrasonic Flow Meter NG800 is a high-performance clamp-on ultrasonic flow meter designed for accurate, non-intrusive liquid flow measurement. Using advanced ultrasonic transit-time technology, the sensor is mounted externally on the pipeline, eliminating the need to cut pipes or interrupt system operation.

Compared with conventional flow meters, the NG800 Series offers easy installation, high measurement accuracy, excellent reliability, and outstanding long-term stability. Since the sensors are attached to the outside of the pipe, there is no contact with the process medium, making the flow meter suitable for a wide range of industrial applications.

---

Operating Principle

The NG800 Ultrasonic Flow Meter operates using the transit-time ultrasonic measurement principle.

Two ultrasonic transducers are mounted on the outside of the pipeline.

• Probe 1 transmits ultrasonic pulses that are received by Probe 2.
• Probe 2 simultaneously transmits ultrasonic pulses that are received by Probe 1.

When liquid flows through the pipe:

• The ultrasonic signal traveling with the flow reaches the receiving probe faster.
• The signal traveling against the flow requires a longer transmission time.

Although both signals travel the same distance, their propagation times differ due to the fluid velocity.

The NG800 calculates the flow velocity by measuring the difference in ultrasonic transit time, and then accurately determines the volumetric flow rate.

This non-contact measuring method provides accurate flow measurement without introducing pressure loss or disturbing the pipeline.

---

Product Features

• Non-intrusive clamp-on ultrasonic measurement
• No pipe cutting or process interruption required
• External sensor installation
• Suitable for non-conductive and special media
• High measurement accuracy
• High reliability and long-term stability
• ±0.5% linearity
• 0.2% repeatability
• Chinese and English bilingual user interface
• Positive, negative, and net flow totalizers
• Excellent anti-interference performance
• Stable operation in variable frequency drive (VFD) environments
• Dual-channel 12-bit high-precision processing
• 4–20 mA analog input
• Built-in daily, monthly, and yearly flow totalizers
• Built-in power-on and power-off event recorder
• Built-in historical data logging
• Optional DC or AC power supply
• Supports commonly used domestic and international flow units

---

Product Applications

The NG800 Ultrasonic Flow Meter is widely used in industrial flow monitoring and process control, including:

• Nuclear power plants
• Thermal power plants
• Hydropower stations
• Paper and pulp industry
• Food and beverage processing
• Pharmaceutical manufacturing
• Petroleum industry
• Chemical processing
• Metallurgical industry
• Mining operations
• Flow verification and inspection
• Flow monitoring and data collection

---

Technical Features

Measurement Performance

---

Signal Processing

• Dual-channel 12-bit high-precision processing
• 4–20 mA analog input
• Positive flow totalizer
• Negative flow totalizer
• Net flow totalizer

---

Data Recording

The NG800 includes built-in data management functions, including:

• Daily flow totalizer
• Monthly flow totalizer
• Annual flow totalizer
• Power-on recorder
• Power-off recorder
• Historical data recording

---

Power Supply

Optional power supply configurations include:

• DC Power Supply
• AC Power Supply
• 220 VAC

---

Flow Units

Supports commonly used domestic and international flow measurement units.

---

Installation Options

Standard Wall-Mounted Version

---

Explosion-Proof Version

---

Overall dimensions

Thickness: 75mm
Wall mounted for
Wall-mounted installation
Expand with 4 pieces of Φ 6mm
Bolt fixation or
Fix with iron nails.

Thickness: 165mm
Explosion proof type is used for
Explosion proof occasions
Explosion proof grade: DIIBT5
Use 4 pieces with a diameter of 8mm
Fixed with expansion bolts.

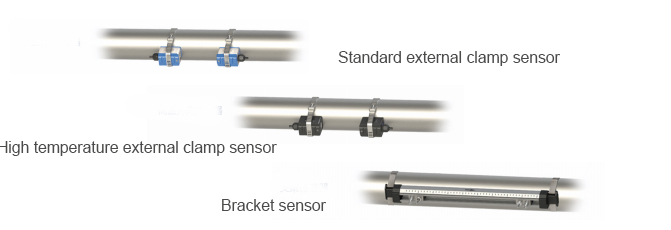

Classification of external clamp probes

Product Advantages

The NG800 Ultrasonic Flow Meter combines high measurement accuracy, non-intrusive installation, and advanced digital signal processing to provide reliable flow monitoring without modifying existing pipelines.

Its clamp-on sensor design eliminates pressure loss, reduces maintenance requirements, and simplifies installation, making it an ideal solution for industrial facilities requiring continuous and accurate liquid flow measurement.

---

Typical Applications

The Ultrasonic Flow Meter NG800 is suitable for a wide range of industrial applications, including:

• Industrial process monitoring
• Water treatment systems
• Power generation facilities
• Chemical plants
• Oil and gas processing
• Pharmaceutical production
• Food processing
• HVAC systems
• Energy management
• Pipeline flow verification
• Industrial automation systems

---

Frequently Asked Questions (FAQ)

How does the NG800 Ultrasonic Flow Meter measure flow?

The NG800 uses the ultrasonic transit-time principle, calculating flow velocity by measuring the difference in travel time between ultrasonic signals moving with and against the flow.

Does the NG800 require pipe cutting during installation?

No. The ultrasonic sensors are mounted externally on the pipe, allowing non-invasive installation without cutting the pipeline or stopping system operation.

What types of media can the NG800 measure?

The NG800 is suitable for a wide range of liquid applications, including non-conductive liquids and other special media.

Is the NG800 suitable for environments with variable frequency drives?

Yes. The NG800 features an anti-interference design, ensuring stable operation even in environments with frequency converters (VFDs).

Is an explosion-proof version available?

Yes. An explosion-proof version is available with an explosion-proof rating of DIIBT5, making it suitable for designated hazardous environments.

Why Choose the Ultrasonic Flow Meter NG800 ?

The Ultrasonic Flow Meter NG800 provides a reliable, high-accuracy solution for non-intrusive liquid flow measurement. With its clamp-on installation, advanced ultrasonic transit-time technology, excellent anti-interference capability, built-in flow totalizers, and historical data recording, it is an ideal choice for industrial flow monitoring, energy management, and process control across a wide range of industries.
