Temperature sensor (PT100) NC100 series | Technical Specifications & Applications
- Brand：NOIKE-AH
- Model：NC100
Specification
Temperature Sensor PT100 NC100 Series
The Temperature Sensor PT100 NC100 Series incorporates a PT100 probe whose resistance changes with temperature. It is available in multiple wiring configurations and probe specifications to accommodate different installation requirements.
The sensor features an all-stainless-steel housing with a compact and robust structure. An optional cabinet-mounted control panel is also available.
Product Overview
The NC100 Series includes:
- PT100 temperature probe
- Two-wire, three-wire, and four-wire configurations
- Multiple measuring range options
- Multiple probe specifications
- All stainless steel housing
- Compact and robust construction
- Optional cabinet-mounted control panel
Technical Principle
The NC100 Series uses a PT100 temperature probe, whose resistance varies with temperature. Temperature is measured by detecting the corresponding resistance change of the PT100 sensing element.
Technical Specifications
| Category | Specification |
|---|---|
| Sensor Element | PT100 |
| Accuracy Class | Class A |
| Permissible Error | ±(0.15 + 0.002 × t) |
| Pressure Resistance | Ø6 Probe: 40 bar; Ø8 Probe: 100 bar |
| Housing Material | Stainless Steel |
| Wetted Material | Stainless Steel 1.4571 |
| Electrical Connection | Terminal Wiring |
| Wiring Method | Terminal Wiring |
| Protection Rating | IP65 |

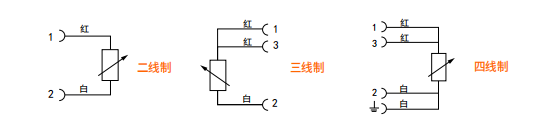

Wiring diagram
Dimensional drawing (mm)
Product Applications
The NC100 Series temperature sensor can meet different temperature control requirements in:
- Hydraulic systems
- Lubrication systems
- Traditional systems
It is used to detect whether the temperature exceeds the maximum or minimum limit.
Frequently Asked Questions (FAQ)
What sensing element does the NC100 Series use?
The NC100 Series uses a PT100 temperature probe, whose resistance changes with temperature.
Which wiring configurations are available?
The PT100 probe is available in:
- Two-wire
- Three-wire
- Four-wire
What is the accuracy class?
The NC100 Series provides Class A accuracy.
What pressure resistance is available?
- Ø6 probe: 40 bar
- Ø8 probe: 100 bar
Which systems is the NC100 Series suitable for?
It is suitable for:
- Hydraulic systems
- Lubrication systems
- Traditional systems
It is used to detect whether the system temperature exceeds the maximum or minimum limit.
Summary
The NC100 Series PT100 Temperature Sensor utilizes a PT100 sensing element for temperature measurement. It offers multiple wiring configurations, various probe specifications, an all-stainless-steel housing, and IP65 protection. The sensor is designed for temperature monitoring in hydraulic, lubrication, and traditional systems where maximum and minimum temperature limits need to be detected.
Application Case Study: Industrial Hydraulic Systems
In heavy-duty industrial hydraulic presses, maintaining optimal fluid temperature is critical to prevent viscosity breakdown and component wear. A major manufacturing facility integrated the Temperature sensor (PT100) NC100 series into their central hydraulic power units. Featuring an all-stainless-steel housing and Class A accuracy, the sensors deliver continuous temperature feedback to the PLC system. This real-time monitoring successfully detects whether the operating temperature exceeds maximum or minimum safety limits, reducing thermal-related downtime by over 30% and ensuring stable, long-term equipment performance.
