NT52B Sanitary Pressure Transmitter

High Accuracy Hygienic Pressure & Level Measurement for Food, Pharmaceutical and Chemical Processing

The NOIKE-AH NT52B Sanitary Pressure Transmitter is designed for hygienic pressure and liquid level measurement in demanding industrial environments. Equipped with a high-performance capacitive pressure sensing element, the transmitter delivers outstanding measurement accuracy, long-term stability, and excellent resistance to high temperatures and corrosive media.

Its sanitary diaphragm structure minimizes dead zones and is suitable for applications where cleanliness, sterilization, and product safety are essential.

Whether measuring pressure, tank level, viscous liquids, or corrosive chemicals, the NT52B provides reliable process control with 4–20 mA and HART communication.

---

Key Features

• Hygienic stainless steel diaphragm design
• High-precision capacitive pressure sensing technology
• Suitable for pressure and liquid level measurement
• Supports 4–20 mA + HART output
• Excellent long-term stability (<0.01%/year)
• Measurement accuracy up to ±0.2% FS
• High temperature resistance up to 300°C
• Corrosion-resistant stainless steel and Hastelloy diaphragm options
• Adjustable zero point and span
• Adjustable damping for stable output
• Explosion-proof and intrinsically safe versions available
• Suitable for high-viscosity and sanitary process media

---

How the NT52B Sanitary Pressure Transmitter Works

The NT52B uses a capacitive pressure sensing principle.

When process pressure acts on the isolation diaphragm, the pressure is transmitted through the filling fluid to a highly sensitive sensing diaphragm.

The diaphragm displacement changes the capacitance between two capacitor plates. This capacitance variation is converted into an accurate electrical signal and finally output as:

• 4–20 mA analog signal
• HART digital communication signal

For gauge pressure models, atmospheric pressure acts as the reference.

For absolute pressure models, a sealed vacuum reference is maintained inside the sensor.

The sensing diaphragm displacement is extremely small (maximum 0.1 mm), ensuring exceptional sensitivity, excellent repeatability, and long-term stability.

---

Typical Applications

The NT52B hygienic pressure transmitter is widely used in industries requiring sanitary process measurement.

Food & Beverage

• Dairy processing
• Brewing systems
• Beverage production
• Sugar processing
• Food filling equipment

Pharmaceutical Industry

• Bioreactors
• Sterile processing
• Clean-in-Place (CIP)
• Sterilize-in-Place (SIP)
• Pharmaceutical production lines

Chemical Industry

• Corrosive liquids
• Acid and alkali measurement
• High-temperature chemicals
• Process vessels
• Reaction tanks

Other Industries

• Paper manufacturing
• Water treatment
• Cosmetic production
• High-viscosity fluids
• Tank level monitoring

---

Technical Specifications

---

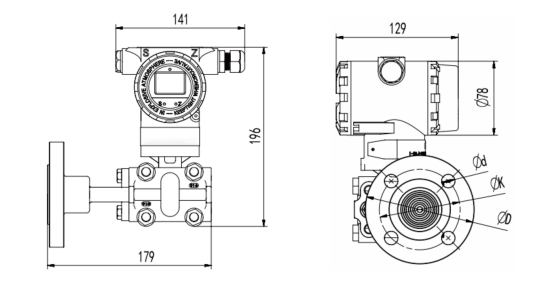

Dimensional drawing (mm)



Material Options

The NT52B supports multiple wetted material options for different industrial applications.

• Stainless Steel Isolation Diaphragm
• Hastelloy CR Isolation Diaphragm
• Multiple Filling Fluid Options
• High-temperature Filling Oil

These options help improve compatibility with corrosive media, sanitary liquids, and high-temperature process fluids.

---

Why Choose the NOIKE-AH NT52B?

Compared with conventional pressure transmitters, the NT52B offers several advantages:

✔ Hygienic process connection

✔ Excellent long-term stability

✔ Suitable for CIP/SIP cleaning processes

✔ High-temperature operation up to 300°C

✔ High accuracy with low drift

✔ Flexible communication (4–20 mA + HART)

✔ Corrosion-resistant diaphragm materials

✔ Customizable measuring ranges

✔ Suitable for pressure and liquid level applications

---

Available Options

The NT52B can be customized according to application requirements.

Optional configurations include:

• Measuring range customization
• Different process connections
• LCD display
• HART communication
• Explosion-proof version
• Intrinsically safe version
• Various diaphragm materials
• Different filling fluids
• OEM & ODM customization

---

Frequently Asked Questions (FAQ)

What is a sanitary pressure transmitter?

A sanitary pressure transmitter is designed for hygienic environments where product contamination must be avoided. It features smooth diaphragm surfaces and sanitary process connections suitable for food, pharmaceutical, and biotechnology industries.

---

Can the NT52B measure liquid level?

Yes. The NT52B can be used for hydrostatic liquid level measurement in tanks by measuring the pressure generated by the liquid column.

---

Does the transmitter support HART communication?

Yes. Standard output includes 4–20 mA, with optional HART digital communication for remote configuration and diagnostics.

---

Is it suitable for high-temperature applications?

Yes. The NT52B supports process temperatures up to 300°C, making it suitable for steam, hot liquids, and other high-temperature industrial processes.

---

Can it measure corrosive media?

Yes. With optional Hastelloy diaphragm and compatible filling fluids, the transmitter is suitable for many corrosive chemical applications.

---

Download

• Product Datasheet
• Installation Manual
• Wiring Guide
• Dimensional Drawing (mm)

---

Contact NOIKE-AH

Looking for a reliable hygienic pressure transmitter for your application?

Our engineering team can help you select the appropriate measuring range, diaphragm material, process connection, and communication protocol.

Contact NOIKE-AH today for technical consultation, OEM/ODM services, or a quotation.
