Product Overview

The NC850 Digital Temperature Switch uses a high-precision temperature sensor for accurate temperature measurement. The measured signal is processed by the internal signal conditioning circuit and converted into standard industrial electrical signals for output and display.

The NC850 series features an all-metal housing and a high-brightness 4-digit LED display, making it suitable for a wide range of industrial temperature monitoring and control applications.

Its dual-button operation and intuitive menu design make configuration simple and convenient. Multiple process connection options are available to meet various installation requirements, while the 330° rotatable display head ensures optimal visibility regardless of the installation position.

---

Product Features

• Economic and cost-effective design
• High-brightness 4-digit LED digital display
• Durable all-metal housing
• Selectable PNP/NPN switching output
• Configurable 4–20 mA analog output
• 330° rotatable display head
• Easy operation with dual-button menu

---

Technical Specifications

Measurement Specifications

---

Switching Output

---

Analog Output

---

Electrical Protection

• Reverse polarity protection
• Overload protection
• Short-circuit protection

---

Display

---

Temperature Specifications

---

Materials

---

Protection Rating

• IP65

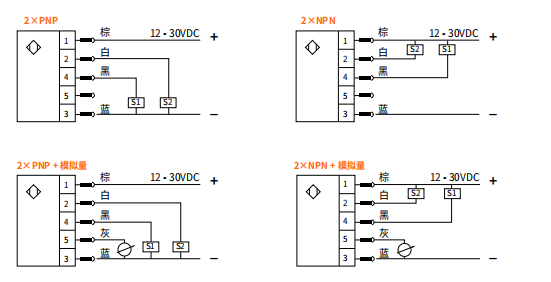

Wiring diagram

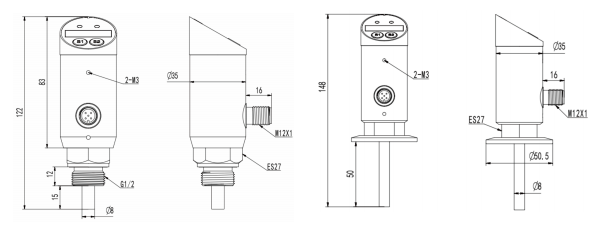

Dimensional drawing (mm)

---

Typical Applications

The NC850 Digital Temperature Switch is suitable for a wide range of industrial temperature monitoring and control applications, including:

• Industrial automation
• Hydraulic and pneumatic systems
• Water treatment equipment
• HVAC systems
• Process control
• Machinery manufacturing
• Chemical processing
• Food and beverage equipment

---

Product Advantages

The NC850 combines accurate temperature measurement, switching control, and analog signal output in one compact device. Its rugged stainless steel construction, bright LED display, and flexible output configuration make it an ideal solution for industrial environments where reliable temperature monitoring is required.

---

Frequently Asked Questions (FAQ)

What is the measurement range of the NC850 Digital Temperature Switch?

The NC850 measures temperatures from -50°C to 200°C.

Does the NC850 support both switching and analog outputs?

Yes. The NC850 supports PNP/NPN switching outputs as well as a configurable 4–20 mA analog output.

Can the display be rotated?

Yes. The display head can rotate 330°, allowing users to obtain the best viewing angle after installation.

What protection rating does the NC850 provide?

The NC850 is rated IP65, making it suitable for demanding industrial environments.
